Continuous height adjustment for the I-Motion system controller
Especially for fixed installations, Movecat is now also offering the new Expert-T III I-Motion system controller on a motion trolley. The mobile base is designed in such a way that the rubber feet of the controller slot into the trolley frame without any need for further conversion. This guarantees, on the one hand, a secure mount, and, on the other, sufficient flexibility to allow the Expert-T III to be used also at any time on a table or in a rack. The Motion Trolley is equipped with five swivelling castors (2 of them lockable) and a remote controlled lifting column that allows the trolley to be raised or lowered to heights continuously variable from 626 mm to 926 mm. This makes it possible for people of very different stature to operate all the keyboards, hot keys and joysticks as well as the trackball and touchscreen ergonomically and in comfort whether standing up or sitting down. Two additional cable holders are provided at the rear.
In the Expert-T III combined with the I-Motion and V-Motion Power Controllers, Movecat is offering a highly efficient solution for complex, scenic kinetic applications in the trade fair, events, studio and touring sectors. Up to 240 drives can be controlled at fixed and variable speeds in accordance with the DGUV V 54 (BGV D8), D8-Plus und DGUV V 17 (BGV C1) standards. The controller corresponds in its basic configuration to the DGUV V 17 (BGV C1) and EN 61508 SIL 3 standards and is therefore suitable for overhead scenic runs (i.e. the movement of loads over human beings).

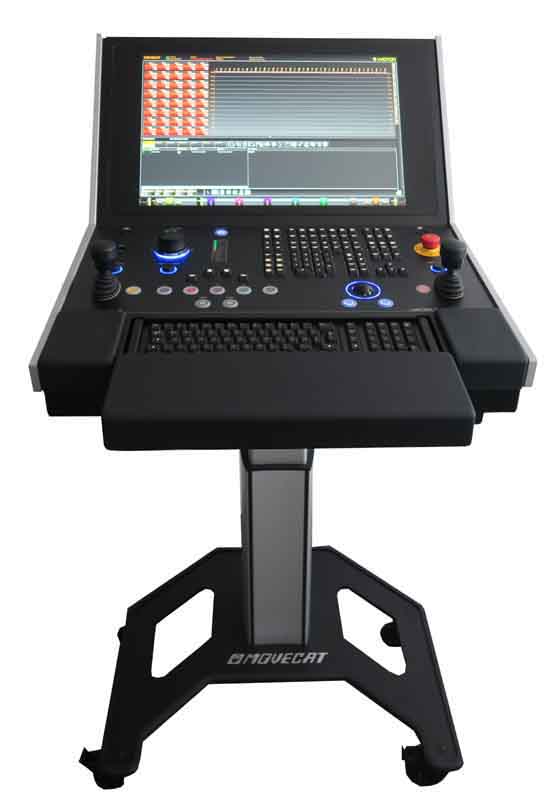

Caption: The height adjustable Movecat Motion Trolley for Expert-T III (Photo: Movecat, may be reproduced freely provided source is named)
Movecat GmbH
Movecat is currently the only manufacturer of kinetic equipment for the stage anywhere in the world capable of offering practice-tested, certified and genuinely available integrated systems compliant with BGV C1 and SIL3 – these consisting of chain hoists, trolleys, band hoists, winches, turntables, load-measurement systems and networks. The company was founded in 1986 by Andrew and Thomas Abele. Movecat products are both developed and manufactured in Germany. Kinetic solutions from Movecat are widely used in big-name national and international shows, tours and TV productions. The company was recently distinguished with a TOP 100 prize, P.I.P.A. award and the VR Innovation Prize for Medium-Sized Companies of the cooperative financial group Volksbanken Raiffeisenbanken.
Movecat GmbH
Rudolf-Diesel-Straße 23
71154 Nufringen
Phone: +49 (0) 70 32 / 98 51-0
Internet www.movecat.de
Contact partner: Angelika Dallmann
